Battery Magic

Table of content

Introduction

Info

Project is Ongoing.

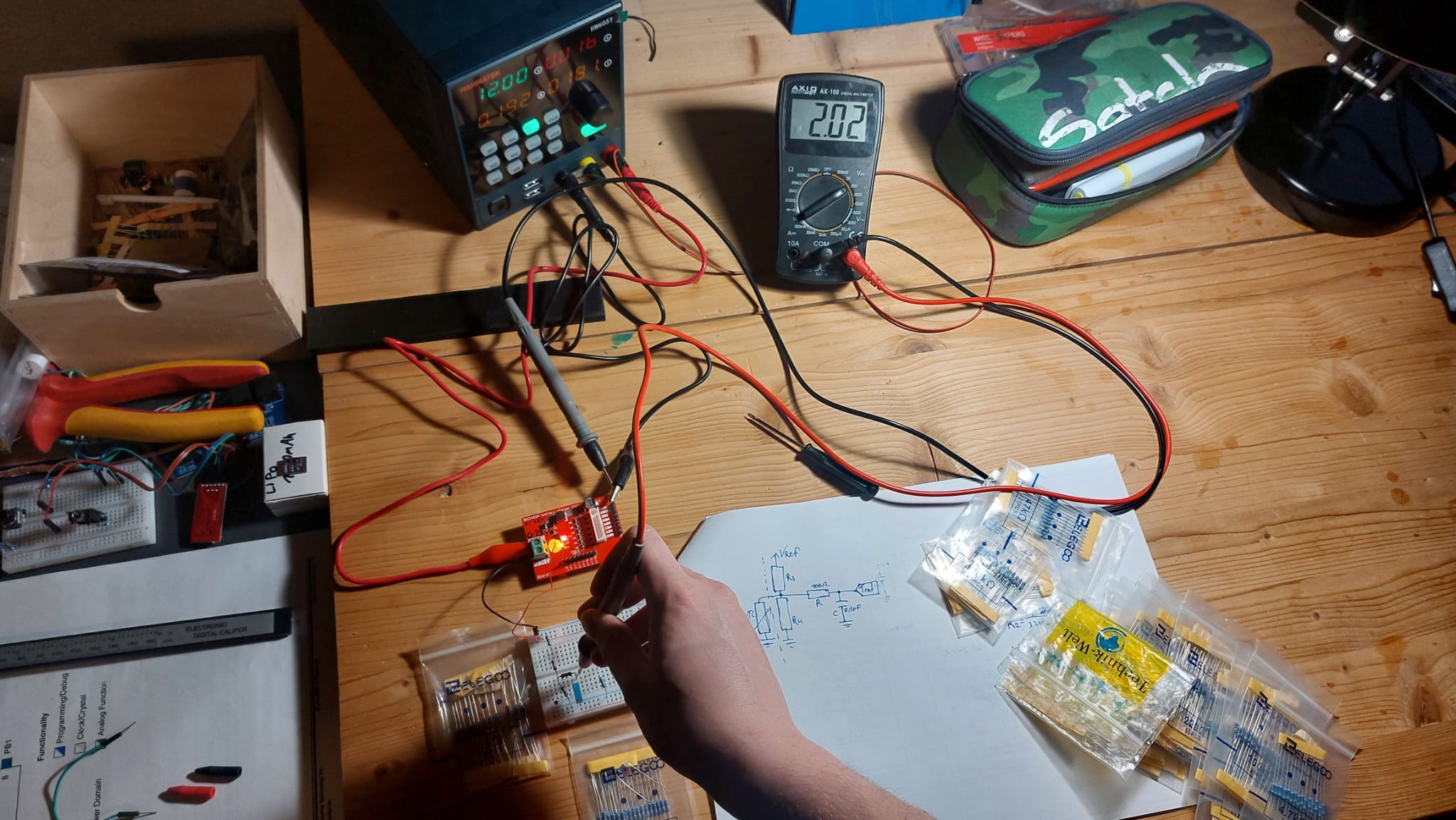

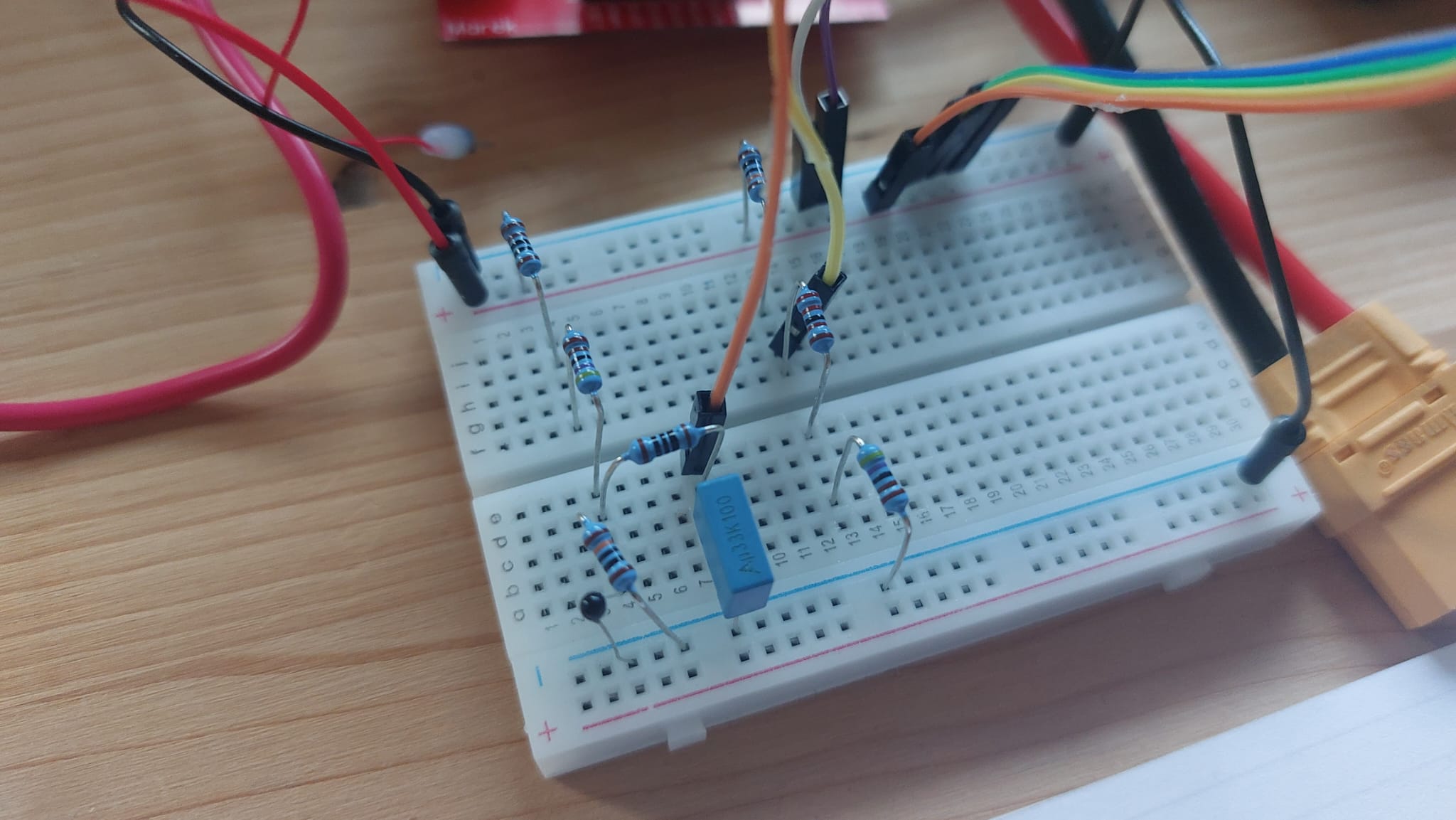

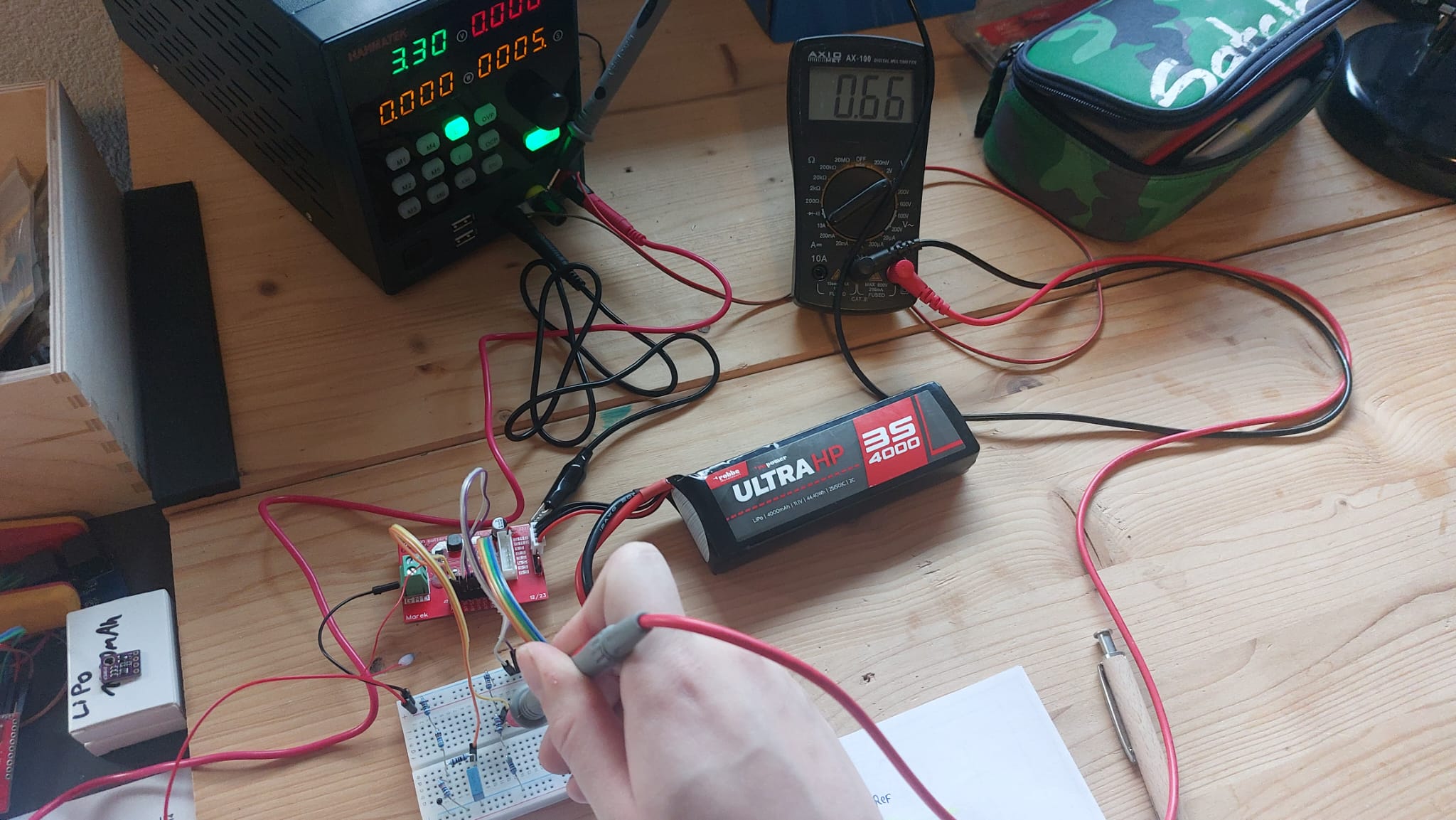

Test Boards

TI Test Board

Info

Test board ordered.

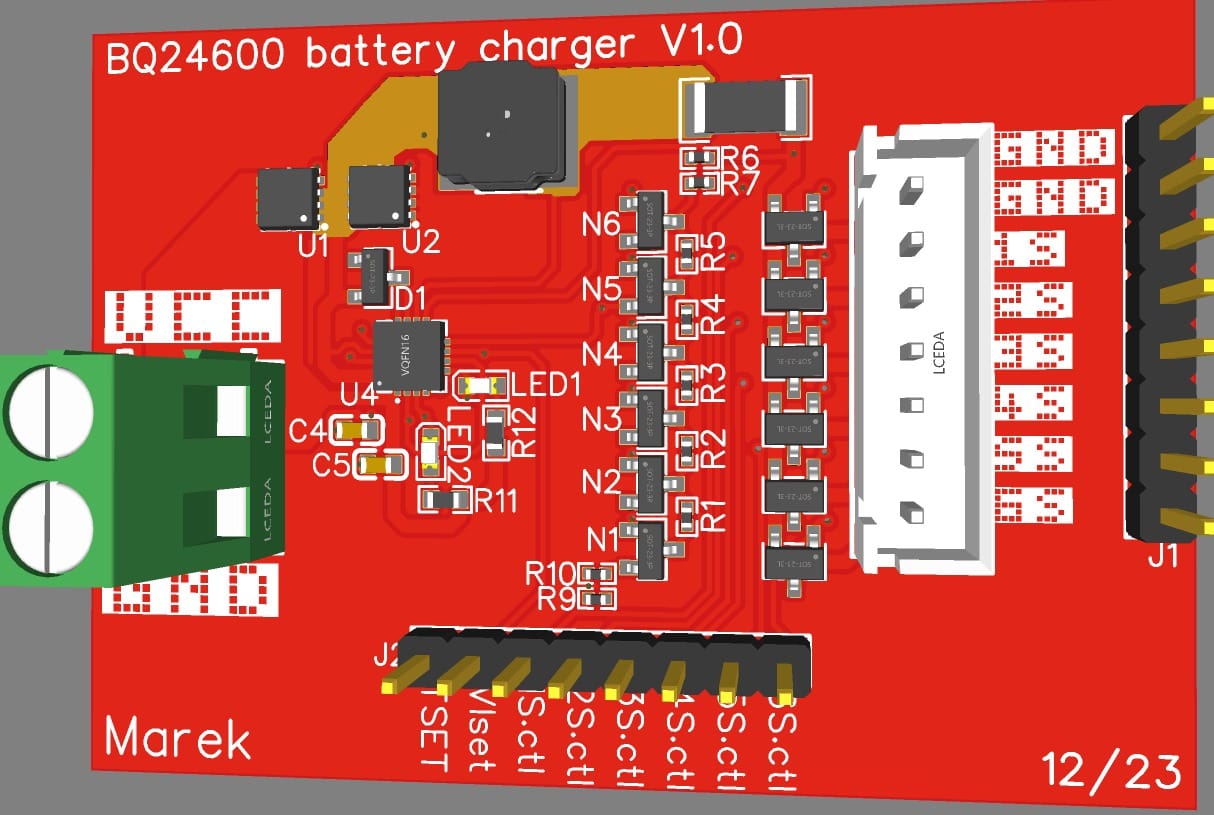

PMP10921 14V-24Vdc Input Voltage, 3-series Cell Li-Ion Battery Charger Reference Design

Overview

The PMP10921 reference design uses the BQ24600 Li-Ion synchronous buck controller to charge up to three series cells. It is designed to charge the cells at 0.372A, but can charge at higher currents by changing one resistor. The board area is less than 20mm x 20mm.

Features

Greater than 90% efficiency at 14Vin Internal loop compensation Small board area (20mm x 20mm) Highly integrated controller with wide operating range

Design Parameters

Output voltage options	PMP10921
Vin (Min) (V)	14
Vin (Max) (V)	24
Vout (Nom) (V)	12.6
Iout (Max) (A)	0.362
Output Power (W)	4.5612
Isolated/Non-Isolated	Non-Isolated
Input Type	DC
Topology	Buck-Synchronous
